Description
Features:
1. Easy and manual operation.
2. Our slip roll machine not only reels but can also cone the materials
3. Our slip roll machine can roll the round bar steels whose specifications are ￠6, ￠8, ￠10 and so on.

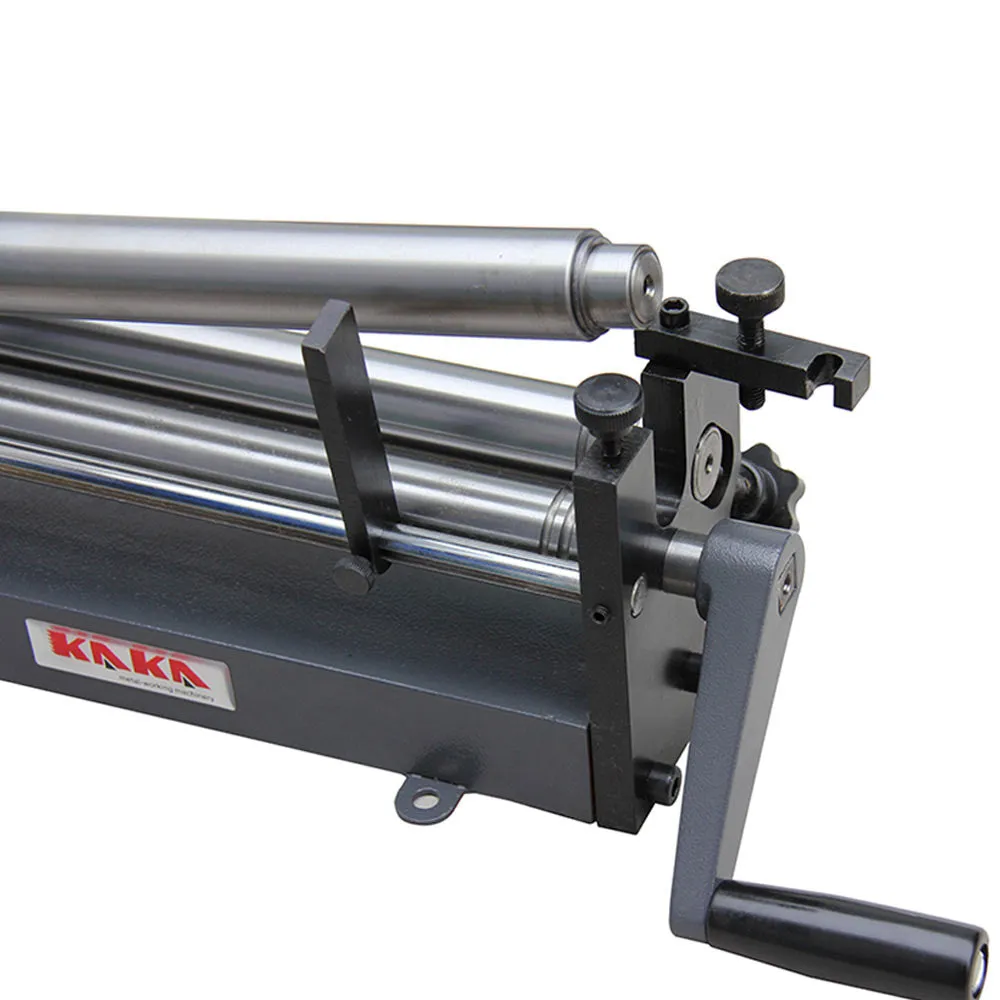

4. The upper axis of our slip roll machine can be easily pulled out in order to take out the processed work piece
Specification:
|
ITEM NO. |
174006 |
| Model | SJ-320 |
|
Max.thickness |
20gauge |
|
Max.width (in) |
12-1/2" |
|
Dia.of roll(in) |
1" |
|
Packing dimension (in) |
19x8-3/4x7-1/2 |
|
N.W./G.W.(lb) |
29/32 |

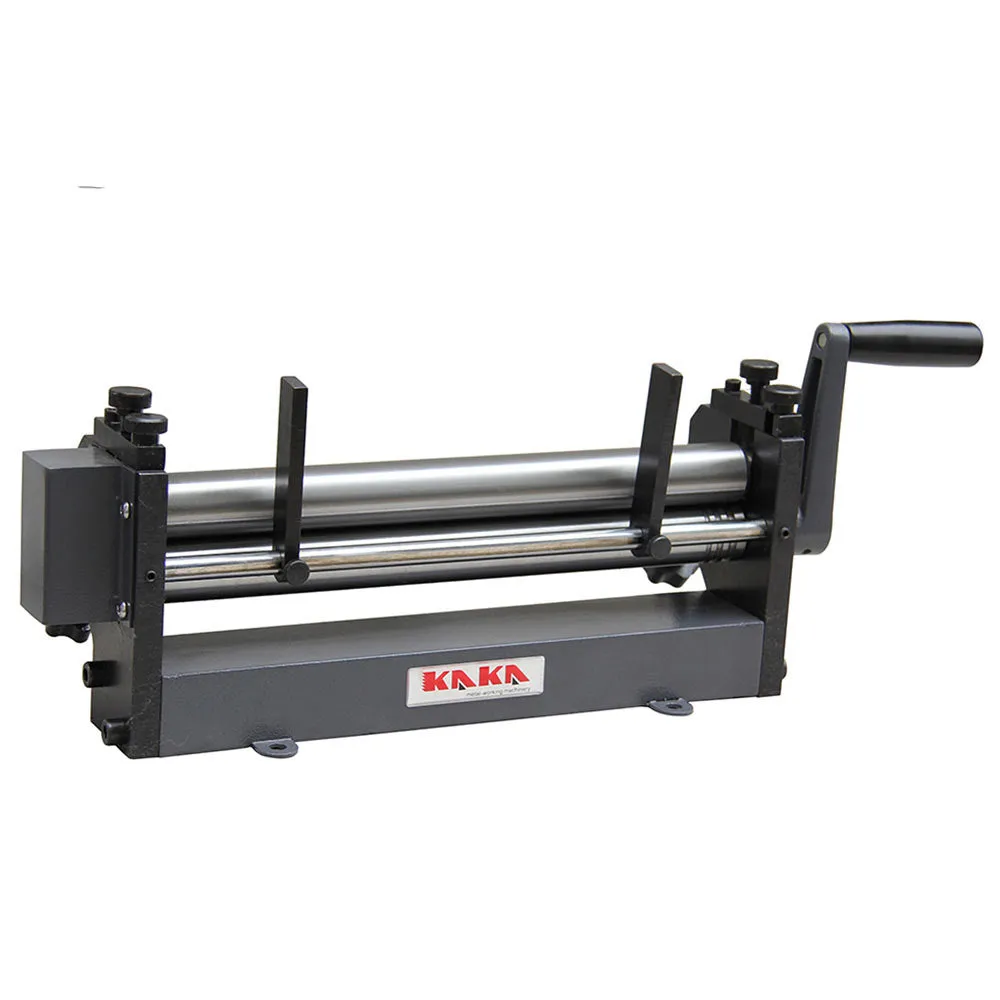

Multiple jobs are within the capabilities of a high-quality SJ-320 slip roll machine. When manufacturing sheet metal, the SJ-320 slip roll machine is there to provide strength and stability. Use on steel sheets up to 320 mm wide and 1 mm thick.

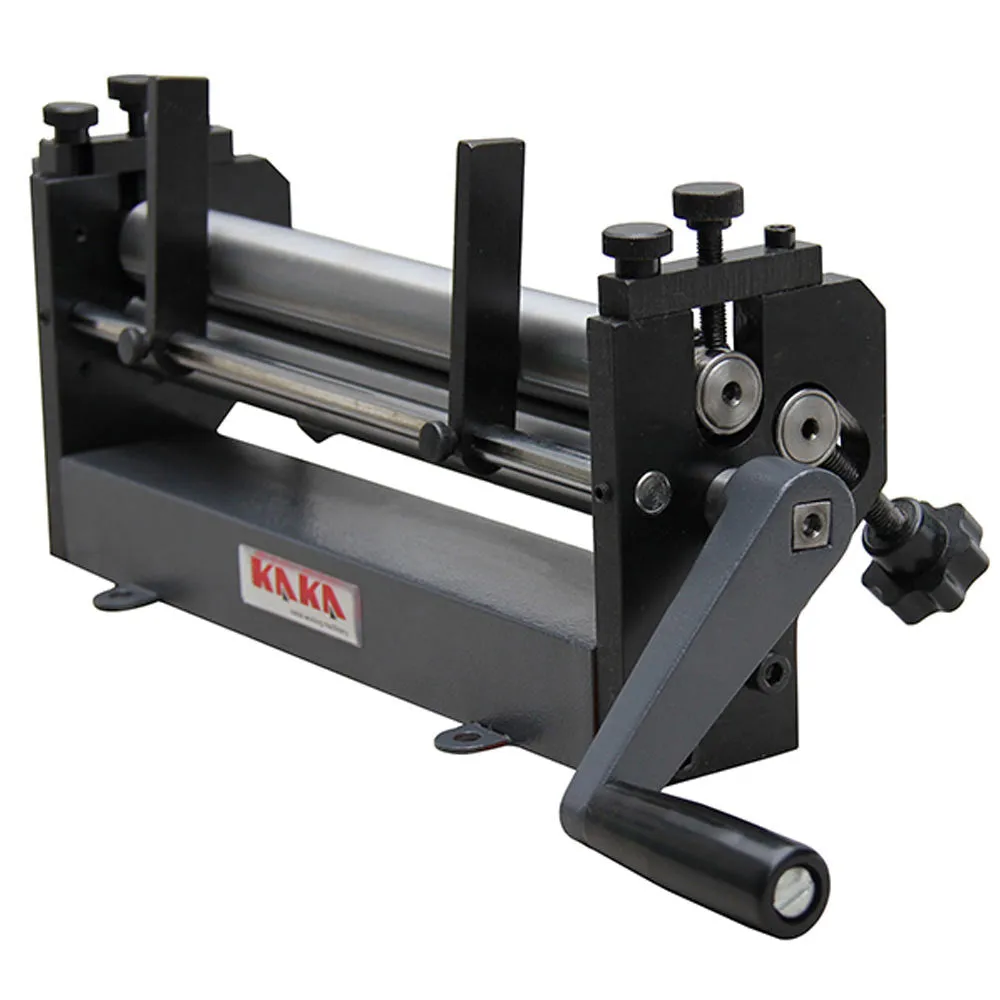

Adjustable knobs let the operator change the distance between the rollers to modify the end radius and work with sheets of varying thicknesses. In addition to reeling, this slip roll machine can also shape the materials into cones. The decorative iron, mild steel, aluminum, and other metals may all be press bent with the help of the form bender.
